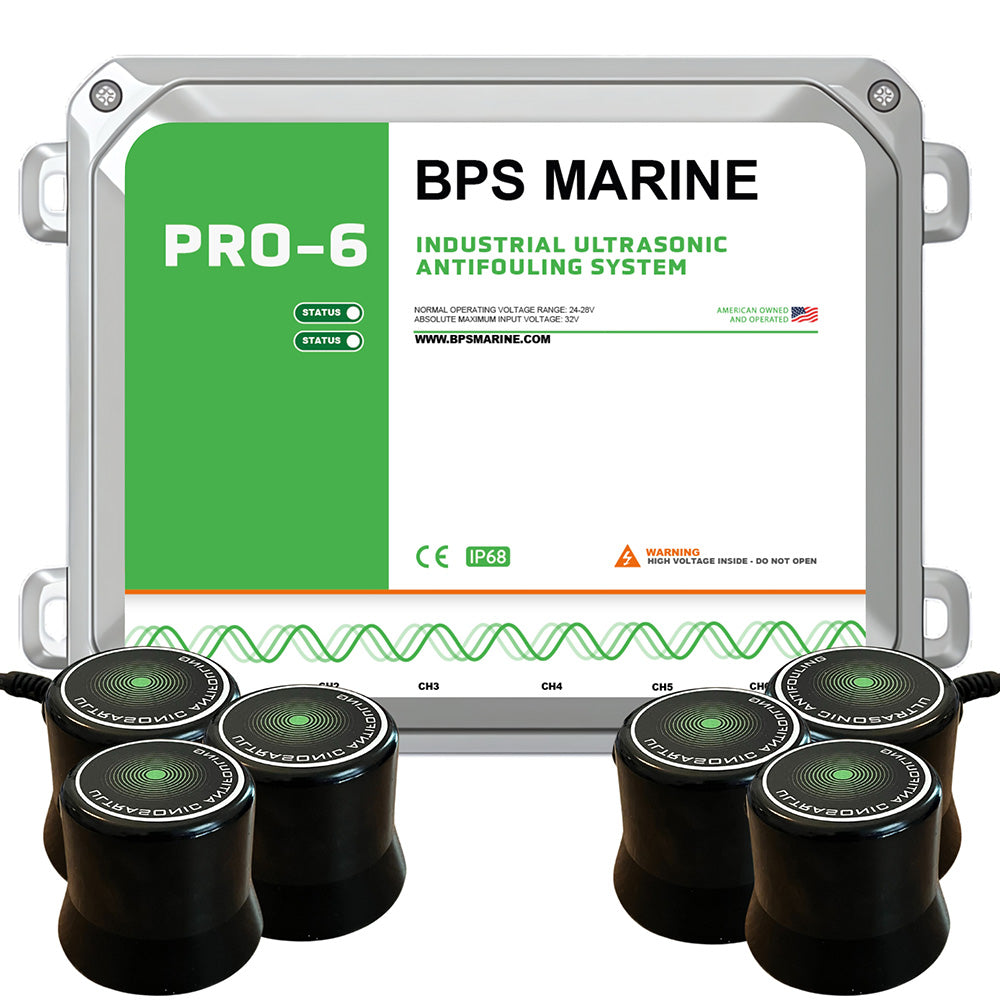

BPS Marine PRO-6 6-Transducer Ultrasonic Antifouling System - 24VDC

Product details & specifications

PRO-6 6-Transducer Ultrasonic Antifouling System - 24VDC

The PRO-6 is a six-transducer system that can add antifouling protection to hulls, drives, rudders, stabilizers, and more. This single system can provide ultrasonic antifouling protection for hulls up to 75ft in length or can be combined with additional systems for larger vessels. The PRO-6 is also the perfect solution for vessels under 60' with pods or stern drives to have one system covering the entire vessel.

The PRO-6 Package Includes:

• 1x PRO-6 Control Module with Integrated Power Cable
• 6x Submersible Ultrasonic Transducers with 15ft of Cable
• 3x Additional 15ft Extension Cables
• 2x Epoxy Kits
• 1x Printed Installation and Operation Manual

Specifications:

• Voltage: 24V DC
• Manufacturer-listed current draw when fully active: 1.5 A
• Transducer output: Up to 120W
• Cable Length: 15ft per transducer
• Frequency: Multi-frequency ultrasonic sweep algorithm (20kHz-42kHz)

Installation Overview:

• No Thru-Hulls: The transducers are installed directly on top of your hull surface using the provided epoxy.
• Install Signal Cable: Each transducer has 15ft of connected signal cable. This ensures an easy installation from the transducer to the controller.
• Mounting the Controller: The PRO-6 Controller runs off of your boat's existing house battery. It is a simple 2-wire connection to the battery bank or distribution panel.

Use and limitations: This system is designed to help prevent marine growth using ultrasonic transducers. The manufacturer states that the hull must be clean before activation and the system is designed for continuous operation. Follow the installation and operating manual for your specific model. Effectiveness depends on the vessel, installation and operating conditions; fuel savings, reduced cleaning and maintenance-free operation are not guaranteed.
