OceanLED X-Series X8 - Midnight Blue LEDs

Product details & specifications

X-Series X8 - Midnight Blue LEDs

The X8 packs a mighty 2,300 Fixture Lumens into its low profile design and utilizes focused optics to produce a 60° circular beam from each LED providing great water penetration, illuminating a large area.

This listing is for the single-color Midnight Blue version.

Fish-Strobe mode produces a randomized light pattern. Catch results are not guaranteed.

Follow OceanLED’s model-specific installation instructions for hull suitability, mounting hardware and electrical connections.

Inspect and clean the coated lens as directed in the manufacturer’s care instructions.

Features:

2,900 Lumens / 2,300 Fixture Lumens:

Outstanding performance from this small, bright light makes it the obvious choice for those who want to stand out from the crowd.

60° Beam Angle

A wide-angled, focused beam lights up a large area of the water.

Compact and simple design

Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light. Use the manufacturer’s installation instructions to confirm mounting and cable-entry requirements.

Easy to Clean

Thanks to its Tritonium coating, the lens is designed for easier cleaning; follow the manufacturer’s care instructions.

Fish-Strobe Mode

Randomized strobing is available through Fish-Strobe mode.

Mounting Recommendations

• Boat size: up to 50' (15M)
• Transom / Hull spacing: 2-4' (0.5-1.2M)
• Transom quantity: 2-6
• Maximum hull thickness: N/A
• Installation depth (to top of fixture): 300mm below water line
• In water fitting: No

Technical

• Light output equivalent to: 50W Xenon
• Fixture Lumens* (total light output from a finished fixture): 2,300
• Lumens: 2,900
• Beam angle: 60° circular
• Typical LED life expectancy: 40,000 hours
• Minimum-Maximum operating voltage DC: 9 - 32 V DC
• Minimum-Maximum operating voltage AC (AC/optional) Current / Amp draw (DC): 1.65A @ 12V DC - 0.75A @ 24V DC
• Approx. light penetration (avg. water quality): 26' (8M)
• Approx. Light penetration (perfect water quality): 72' (21+M)
• Driver type: Internal
• Driver size (L x W x H): N/A
• LED color: Midnight Blue
• IP Rating: IP68
• Fish strobe: YES
• Anti fouling properties: Tritonium coated lens
• LED Manufacturer: CREE

Physical

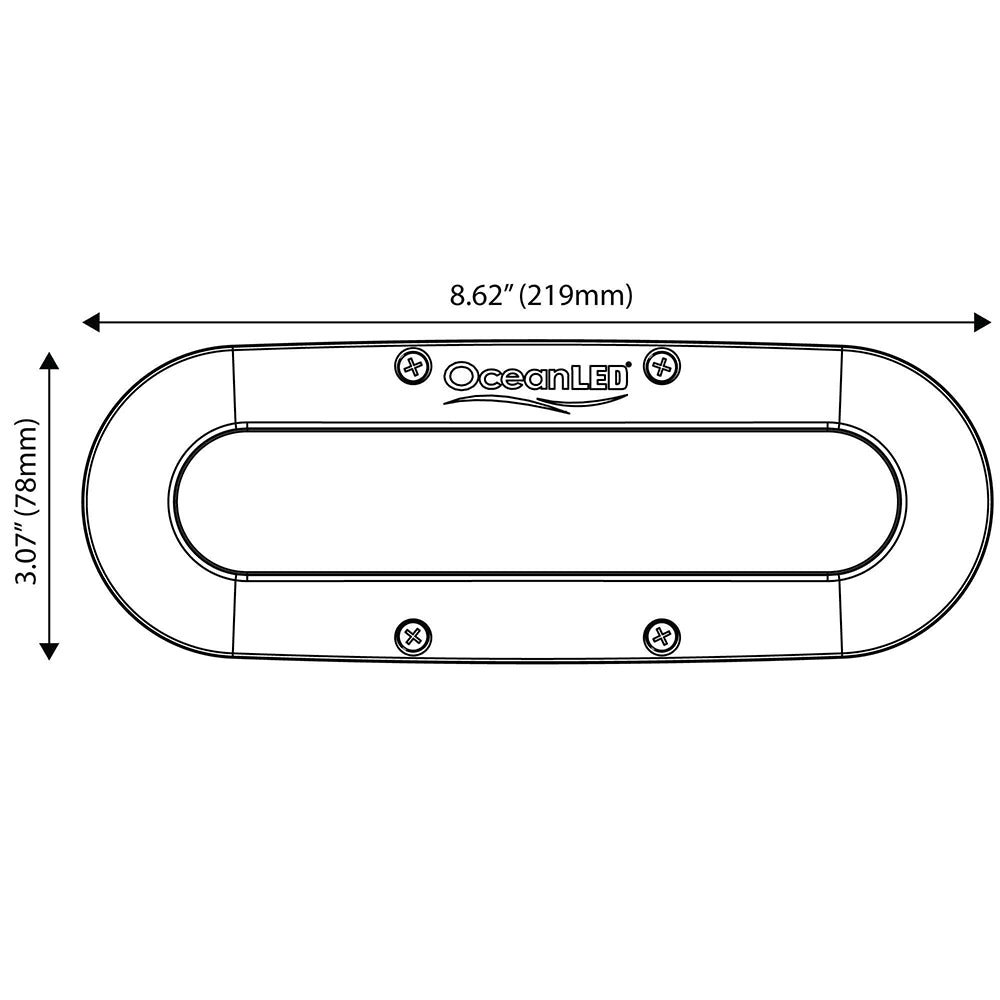

• Size: 8.62" (219mm) x 3.07" (78mm)

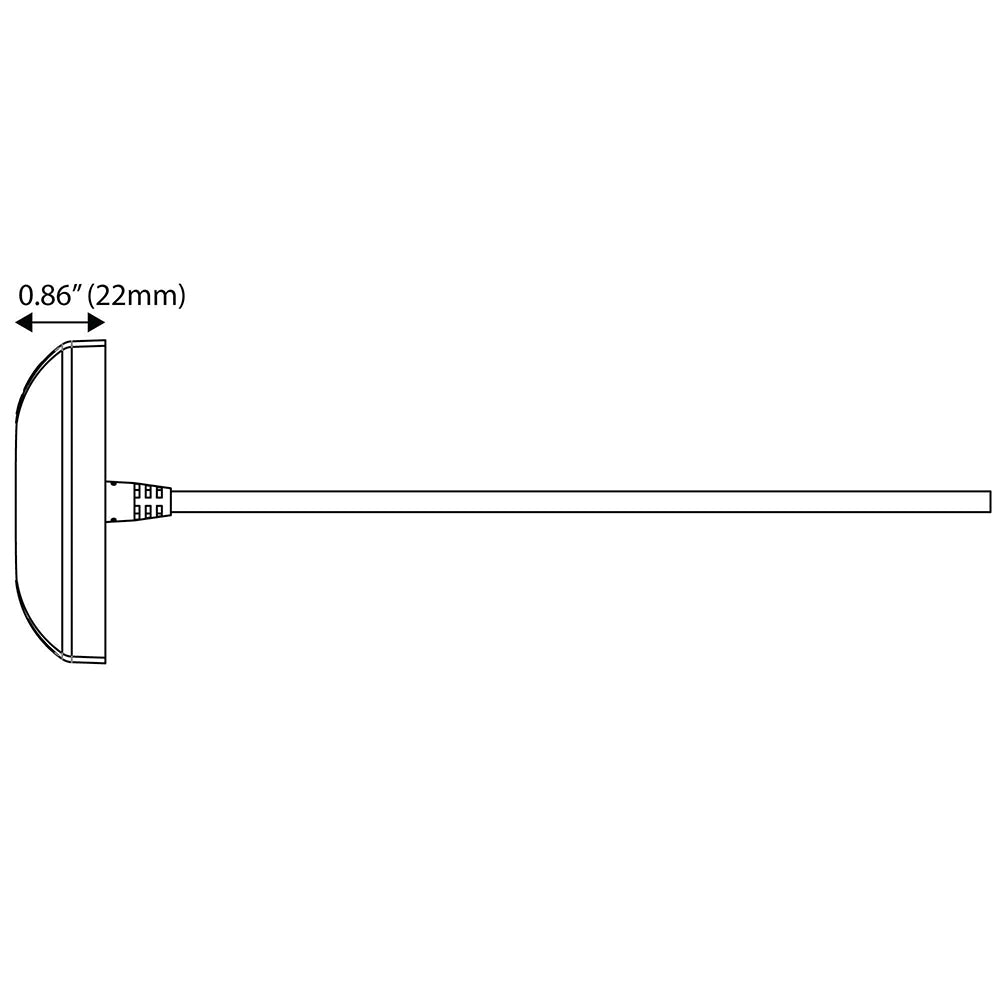

• Depth: 0.86" (22mm)
• Total weight including electrical driver: 0.34kg
• Extension cable length (standard-hard wired to light): 9-7/64' (3M)
• Hole cut-out for cable entry: 1/2" (12.5mm)
• Material: Chemically Resistant Optical Polymer
• Lens material: Pilkington Optiwhite
• Body construction: Machined (First Release)
• Bezel material: Plastic
• Bezel thickness: N/A
• Bezel options: Stainless Steel Bezel Optional
• Bezel color: White
• Drag factor: N/A
• Optics: Collimator
• No of LEDs: 8
• Certification: EMC Approved
• CE Approved: Yes

Specifications:

• Warranty: 2 years
